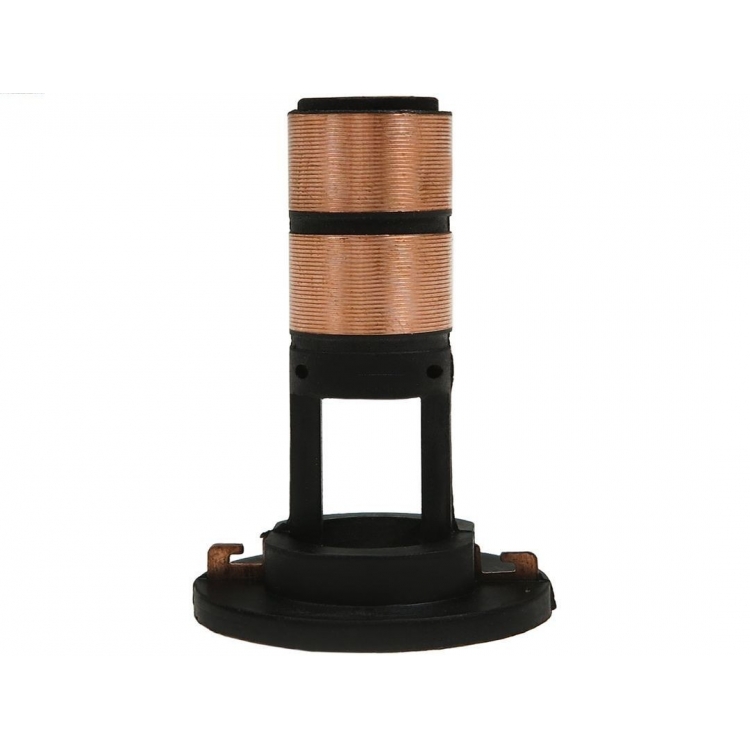

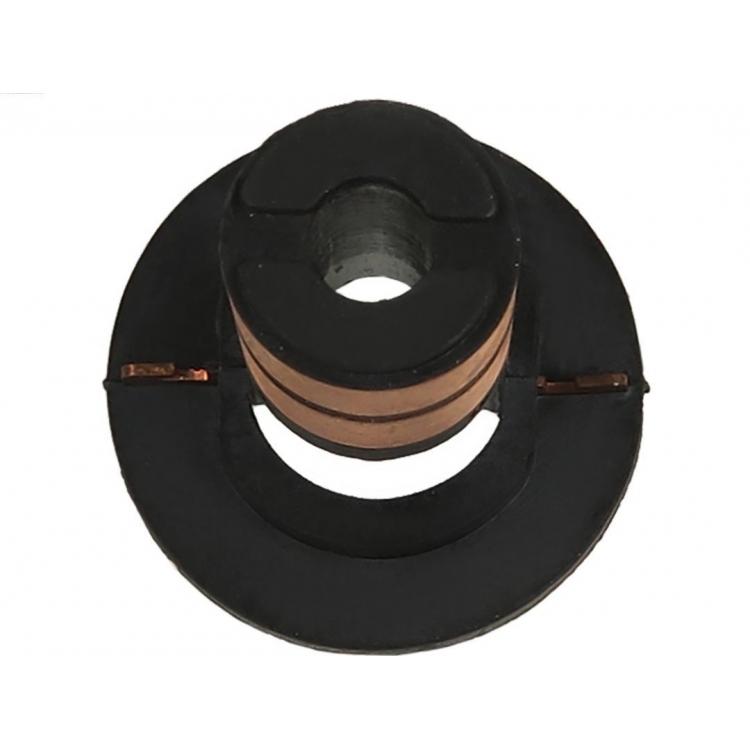

Generatoriaus kolektorius - ASL9075S

5902129211303 / ASL9088S

133402 / CARGO

Product features:O.D. 1 [ mm ]                 28.00

I.D. 1 [ mm ]  17.00

H. 1 [ mm ]    10.20

H. 2 [ mm ]    10.20

Hc [ mm ]      25.10

J [ mm ]         1.90

233937 / CARGO

Product features:O.D. 1 [ mm ]                 16.40

O.D. 2 [ mm ]                     30.00

I.D. 1 [ mm ]  6.20

H. 1 [ mm ]    7.60

H. 2 [ mm ]    8.00

Hc [ mm ]      39.00

J [ mm ]         0.90

L [ mm ]        101.90

233938 / CARGO

ID                  13.40

OD                27.00

Total length    30.00

ASL9020 / 136000 /

Product features:

132642 / CARGO

Product features:O.D. 1 [ mm ]                 26.60

O.D. 2 [ mm ]                     35.30

I.D. 1 [ mm ]  16.80

H. 1 [ mm ]    8.70

H. 2 [ mm ]    9.30

Hc [ mm ]      24.40

J [ mm ]         1.10

L [ mm ]        65.20

 ASL9029 / 332651 / 335802
Product features:

O.D. 1 [ mm ]                     16.10

O.D. 2 [ mm ]                     24.00

I.D. 1 [ mm ]  7.00

H.1 [ mm ]     7.50

H.2 [ mm ]     7.50

Hc [ mm ]      51.60

J [ mm ]         2.40

L [ mm ]        37.80

ASL9016 / 131219

Product features:O.D. 1 [ mm ]                 14.00

I.D. 1 [ mm ]  5.00

H. 1 [ mm ]    8.20

Hc [ mm ]      10.40

Product features:

ASL9008 / 135172
O.D. 1 [ mm ]                     16.10

O.D. 2 [ mm ]                     24.00

I.D. 1 [ mm ]  7.00

H.1 [ mm ]     7.50

H.2 [ mm ]     7.50

Hc [ mm ]      51.60

J [ mm ]         2.40

L [ mm ]        37.80

137574 / CARGO

ID                  17.20

OD                29.00

Total length    37.50

O.D. 1 [ mm ]                     14.90

O.D. 2 [ mm ]                     27.00

I.D. 1 [ mm ]  7.10

I.D. 2 [ mm ]  9.10

H.1 [ mm ]     9.70

H.2 [ mm ]     9.40

Hc [ mm ]      48.30

J [ mm ]         2.00

L [ mm ]        37.40
