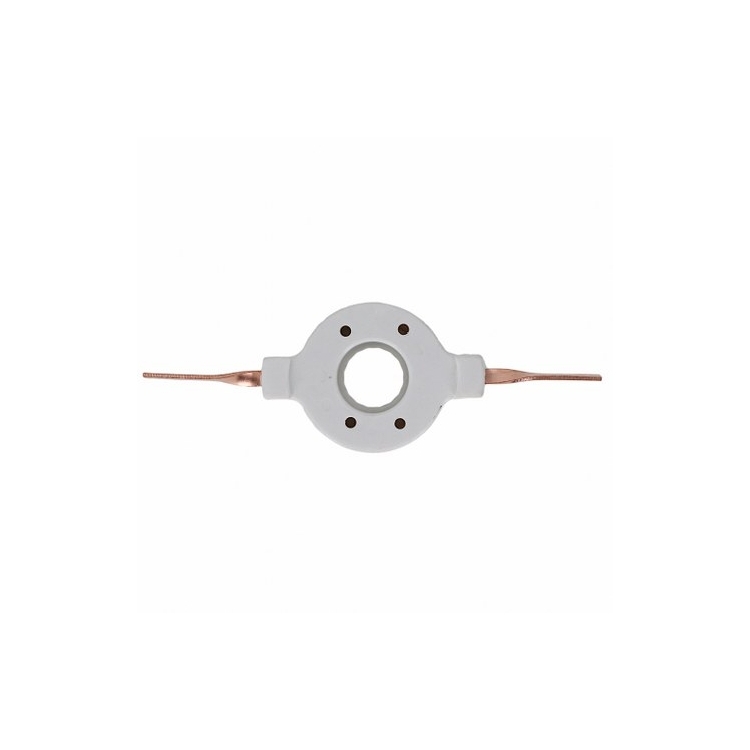

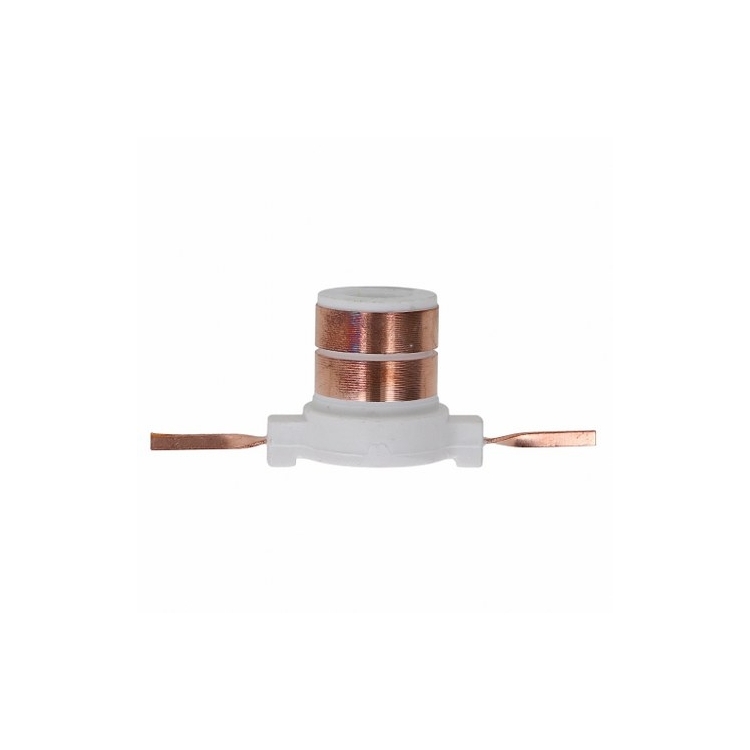

Generatoriaus kolektorius / E90F10328AA

O.D. 1 [ mm ]                     16.10

O.D. 2 [ mm ]                     24.00

I.D. 1 [ mm ]  7.00

H.1 [ mm ]     7.50

H.2 [ mm ]     7.50

Hc [ mm ]      51.60

J [ mm ]         2.40

L [ mm ]        37.80

ASL9016 / 131219

239930 / CARGO

Product features:O.D. 1 [ mm ]                 13.50

O.D. 2 [ mm ]                     26.00

I.D. 1 [ mm ]  5.00

H. 1 [ mm ]    7.30

H. 2 [ mm ]    7.30

Hc [ mm ]      42.70

J [ mm ]         2.60

L [ mm ]        40.40

O.D. 1 [ mm ]                     14.90

O.D. 2 [ mm ]                     27.00

I.D. 1 [ mm ]  7.10

I.D. 2 [ mm ]  9.10

H.1 [ mm ]     9.70

H.2 [ mm ]     9.40

Hc [ mm ]      48.30

J [ mm ]         2.00

L [ mm ]        37.40

ASL9020 / 136000 /

ASL928

137571 / CARGO

ID                  14.00

OD                27.20

Total length    32.30

ASL9012

131819 / CARGO

Product features:O.D. 1 [ mm ]                 15.00

I.D. 1 [ mm ]  10.00

H. 1 [ mm ]    9.30

H. 2 [ mm ]    9.30

Hc [ mm ]      23.00

133402 / CARGO

Product features:O.D. 1 [ mm ]                 28.00

I.D. 1 [ mm ]  17.00

H. 1 [ mm ]    10.20

H. 2 [ mm ]    10.20

Hc [ mm ]      25.10

J [ mm ]         1.90

Product features:

28-91854 / TRANSPO

•  5.12mm ID x 13.42mm OD x 42.3mm OAL

•  Bosch IR/IF Alternators

135179 / CARGO

Product features:O.D. 1 [ mm ]                 14.90

I.D. 1 [ mm ]  6.70

I.D. 2 [ mm ]  8.60

H. 1 [ mm ]    9.70

H. 2 [ mm ]    9.70

Hc [ mm ]      27.80

J [ mm ]         1.00

Product features:

133402 / CARGO

Product features:O.D. 1 [ mm ]                 28.00

I.D. 1 [ mm ]  17.00

H. 1 [ mm ]    10.20

H. 2 [ mm ]    10.20

Hc [ mm ]      25.10

J [ mm ]         1.90
