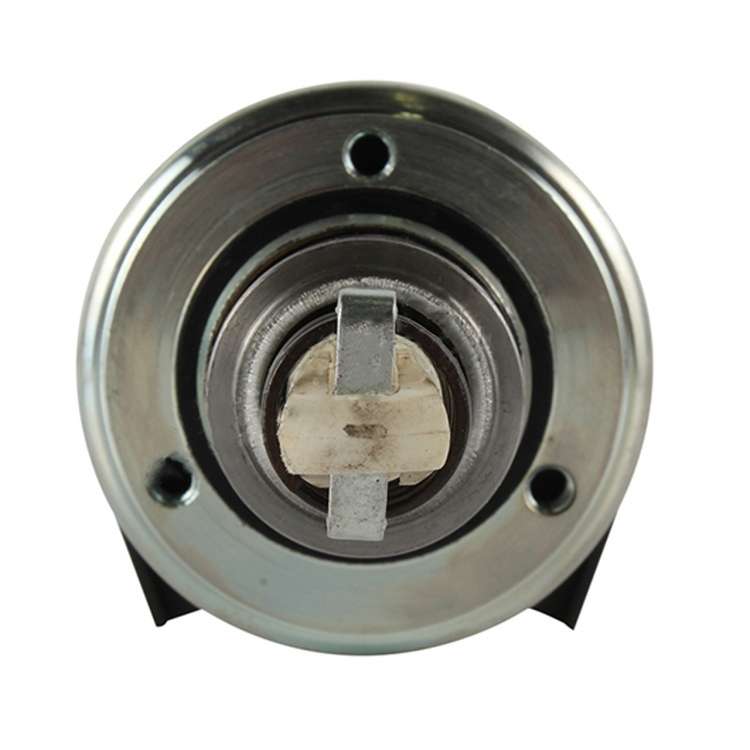

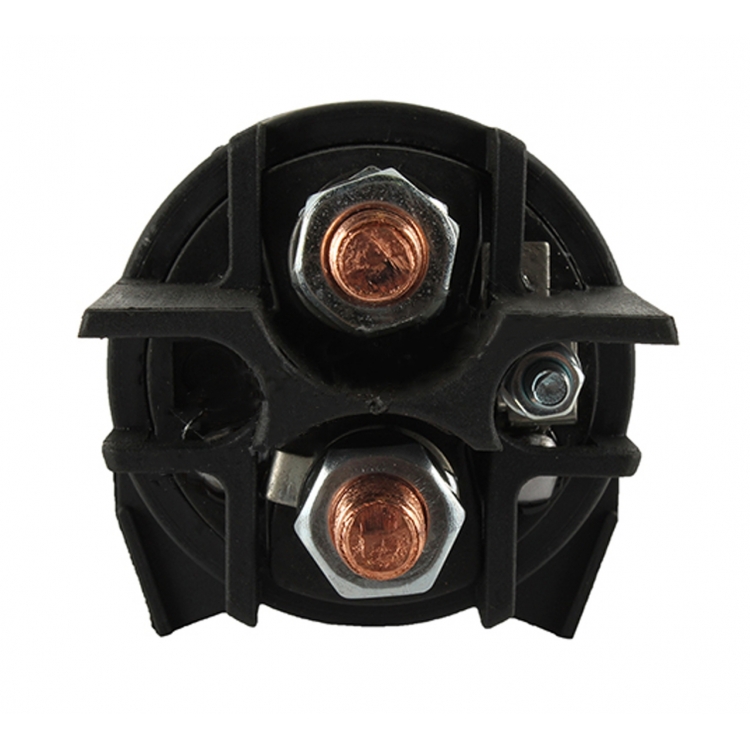

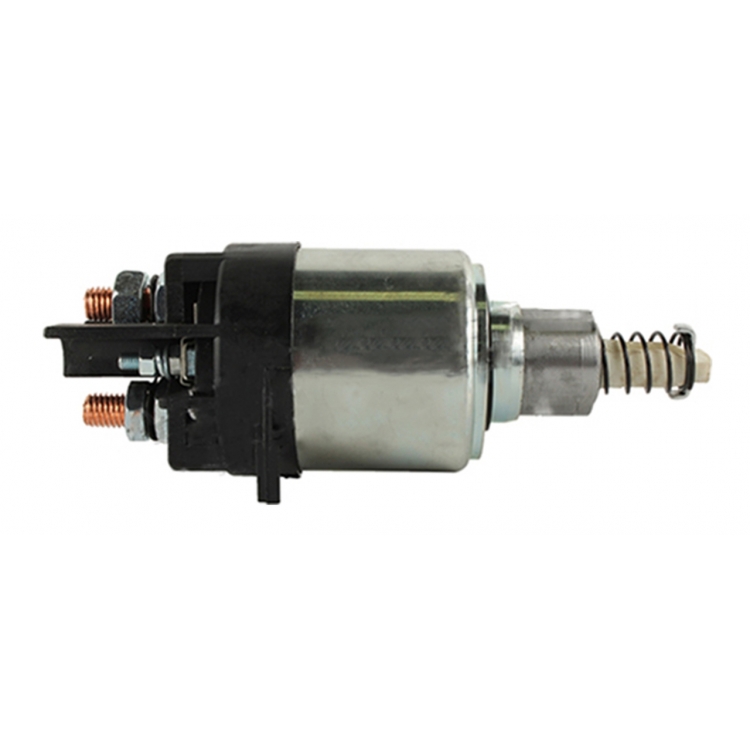

Automaty rozrusznika - / 2339402300
41,00 €
Brutto
SS0105 / 333917
|
Starter solenoids |
|
|
Voltage [ V ] |
12 |
|
I.D.1 [ mm ] |
30.00 |
|
O.D.1 [ mm ] |
61.50 |
|
O.D.2 [ mm ] |
53.70 |
|
L.1 [ mm ] |
82.20 |
|
B+ [ mm ] |
M10x1.5 |
|
L.B+ [ mm ] |
26.10 |
|
Coil bolt [ mm ] |
M10x1.5 |
|
L.Coil bolt [ mm ] |
26.30 |
Duomenų apsauga
Jūsų duomenys griežtai tvarkomi pagal Duomenų apsaugos reglamentą.
Pristatymo informacija
Pristatymas per 1-3 darbo dienas
Grąžinimo taisyklės
Pas mus taikomas standartinis prekių grąžinimas (14 kalendorinių dienų)
2339402300 BOSCH
2339402303 BOSCH
2339402350 BOSCH
333917 CARGO
335533 CARGO
SSB0025 KRAUF
054.000.723 PSH
66-91109 WAI / TRANSPO
SND13084 WOODAUTO
Reference nb Producer
0001260001 BOSCH
0001260004 WOODAUTO
S0286 AS-PL
John Deere Agricultural Tractor
6530 6068T, 6.8L John Deere Dsl. 2007-2008
6530 Premium 6068T, 6.8L John Deere Dsl. 2007-2008
6630 6068T, 6.8L John Deere Dsl. 2007-2011
6630 Premium 6068T, 6.8L John Deere Dsl. 2007-2011
6830 6068T, 6.8L John Deere Dsl. 2007-2011
6830 Premium 6068T, 6.8L John Deere Dsl. 2007-2011
6930 6068T, 6.8L John Deere Dsl. 2007-2011
6930 Premium 6068T, 6.8L John Deere Dsl. 2007-2011
7130 6068, 6.8L John Deere Diesel 2007-2011
7130 Premium 6068, 6.8L John Deere Diesel 2007-2011
7230 6068, 6.8L John Deere Diesel 2007-2011
7230 Premium 6068, 6.8L John Deere Diesel 2007-2011
7330 6068, 6.8L John Deere Diesel 2007-2011
7330 Premium 6068, 6.8L John Deere Diesel 2007-2011
7430 PREMIUM 6 Cyl. 6.78L 6724cc 410cid 2008-2009
7430 PREMIUM 6068T, 6.8L John Deere Dsl. 2006-2011
7530 6068T, 6.8L John Deere Dsl. 2006-2011
7530 PREMIUM 6 Cyl. 6.78L 6724cc 410cid 2009
7530 PREMIUM 6068T, 6.8L John Deere Dsl. 2006-2011
John Deere Tractor
6130 4045T, 4.5L John Deere Dsl. 2007-2012
John Deere Tractor - Utility
6230 4045T, 4.5L John Deere Dsl. 2007-2012
6230 Premium 4045T, 4.5L John Deere Dsl. 2007-2012
6330 4045T, 4.5L John Deere Dsl. 2007-2012
6330 Premium 4045T, 4.5L John Deere Dsl. 2007-2012
6430 4045T, 4.5L John Deere Dsl. 2007-2009
6430 Premium 4045T, 4.5L John Deere Dsl. 2007-2009
SOLENOID REPLACES:BOSCH
: 2339402300, 2-339-402-300
STARTER REPLACES:JOHN
DEERE: RE526375 / RE527400
BOSCH: 0-001-260-001 / 0001260001
23-0169
